Return BudgetBACH:
01 BP

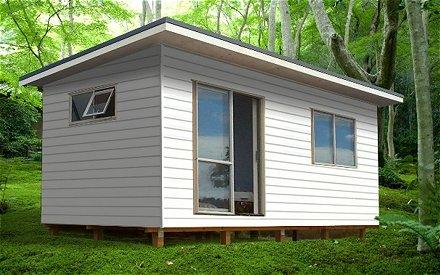

BudgetBACH - SmartPLANZ
Sleepouts, Cabins or Baches, over 10m²
dot Designed for Economy
dot Low cost Consent and Manufacturing drawings
dot Owner-Build Assembly Instructions
dot Custum Client Floor Plans
dot Full Material Schedules and Order Forms
Model Area Width Depth Plans (from)
BP4827 12.96m² 4.8m 2.7m $1,225
BP5430 16.20m² 5.4m 3.0m $1,365
BP6036 21.60m² 6.0m 3.6m $1,645
BP7242 30.24m² 7.2m 4.2m $1,960
BP8448 40.32m² 8.4m 4.8m $2,135
BP9654 51.84m² 9.6m 5.4m $2,268
BP10860 64.8m² 10.8m 6.0m $2,450

 Prices are for basic Building Consent plans. Manufacturing and DIY Assembly plans are additional.

 Price don't include site specific drawings, or any non-standard engineering.  .
Plans
Building Consent Full Plans and Specifications for Council
Manufacturing Pre-nail frame and major component drawings. Full material schedules.
DIY Assembly Owner-build 3D schematic building instuctions to code compliance.
Specifications:
Lockup Kitset Shell:
Foundations, Floor: Concrete Pad or Piles, Joists and Particle Board
Frame: H1.2 Pine
Roof: Corrugate Zincalume
Cladding: Grooved Shadowclad plywood or 180 Hardiplank w/board
Doors: Aluminium Slider or French doors
Windows: Optional aluminium awning to any size
Lining Kit:
Insulation: Fibreglass Batts
Wall and Ceiling Lining: Plasterboard
Trim: Primed pine
Options:
Floor: H3 Plywood
Roof: Colorsteel
Cladding: Ply and batten, Hardiflex
Doors/Window: Other sizes available on request
Lining: MDF or Plywood
